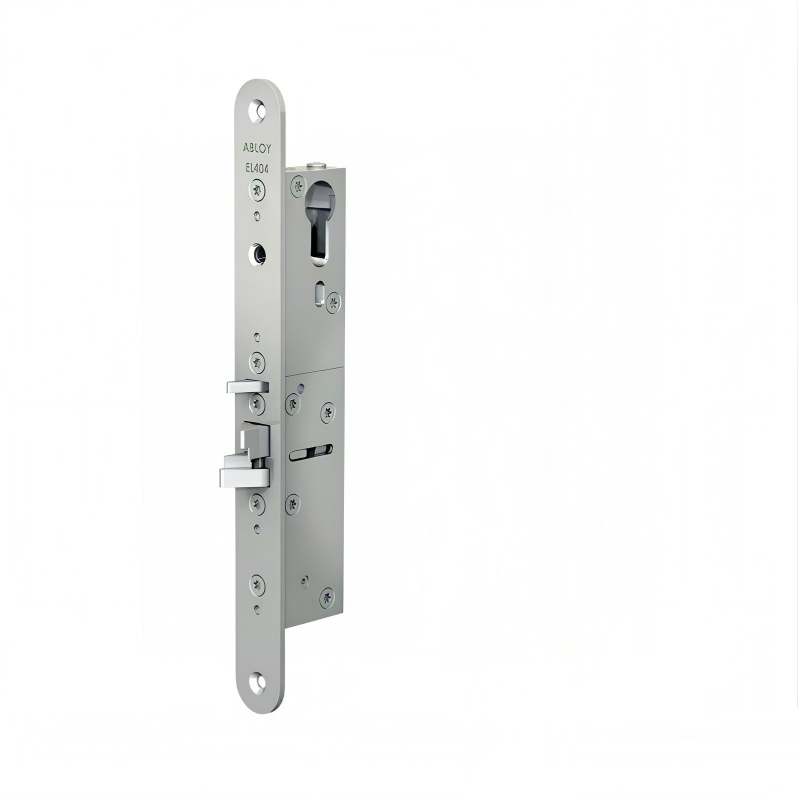

ABLOY® EL404

DIN standard push/pull function electric lockcase

Product description

EL404 can be controlled by a variety of control devices such as card reader, keypad or timer.

The lock can be connected to automatic swing door operator and is an excellent solution for

use with access control system. Frame mounting above the door is also possible. Door can be

opened by pushing or pulling when electric control is switched on. Lock can always be opened

by key or by thumbturn and the lock deadlocks automatically when the door closes. EL404 is

typically used in exterior doors of apartment buildings and interior doors of business premises.

DIN model.

Overview of Advantages

• Doors with door automatics

• Suitable for swinging doors

• Two different versions of the lock case can be ordered

Electrical function

-Fail locked EL404_100000

-Fail unlocked EL404_101000

• NOT for fire rated doors

• NOT for doors with seals

Scope of delivery

• 1 pc lock

• 1 pc accessory set (fixing screws)

• 1 operating manual
