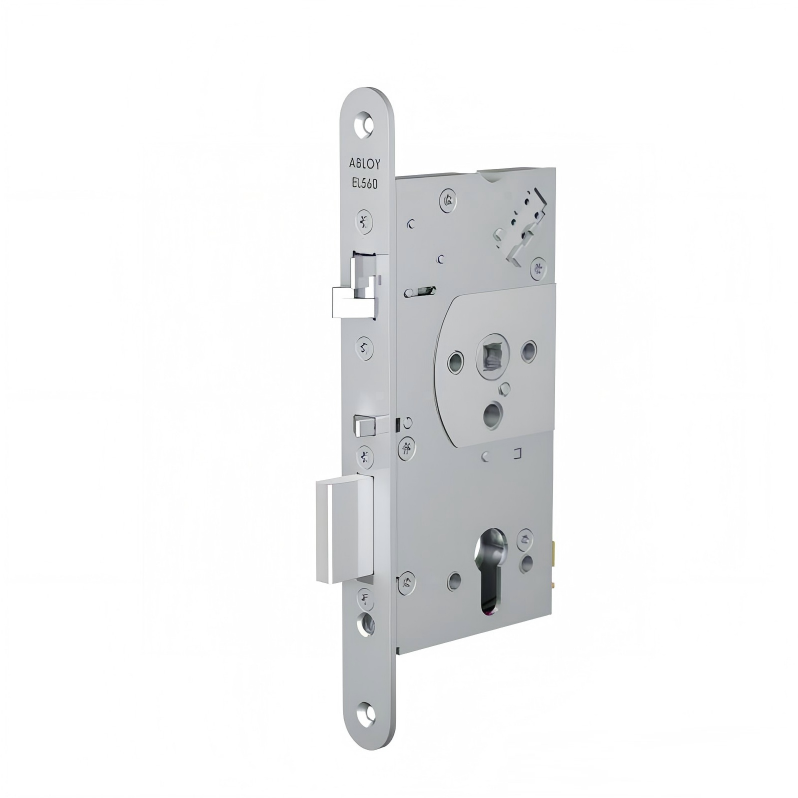

ABLOY® EL560, EL561, EL562, EL563

High security DIN standard handle controlled lock

for wooden and metal doors

Product description

High security locks EL560/561/562/563 are used especially in situations where the

advantages of handle-controlled unlocking have to be combined with the mechanical security

requirements. The integrated monitoring contacts from the lock can be connected to the

different systems.

When door closes, dead bolt is thrown out automatically, double action latch is blocked and the

lock case is secured in two points.

The exit side settings (EL560/562) and selecting between fail-locked and fail-unlocked can

be performed on the lock as required.

EL560/562 with split spindle function

Outside handle is engaged electrically, e.g. by electric access control. By pressing engaged

handle, dead bolt is retracted and double action latch released.

Inside handle opens lock mechanically (exit function), no need for electric control.

EL561/563 with straight spindle function

Both handles are engaged electrically e.g. by electric access control. By pressing engaged

handles, dead bolt is retracted and double action latch released.

Overview of Advantages

• Mechanical automatic locking system

• Non handed, left / right

• Exit side can be changed over *

• Can be changed between fail-unlocked & fail-locked

• Burglary-resistant due to dead bolt with 20 mm throw

• Exit function by inside handle *

• Suitable for fi re doors

• Controllable outside handle *

• Mechanical override with cylinder

• Monitoring functions

• Door status

• Handle down

• Bolt deadlocked

• Bolt in

• Key cylinder used

• Sabotage loop

* EL560/EL562

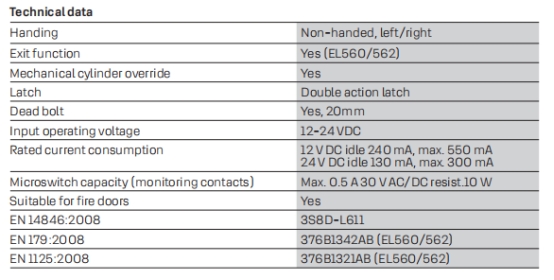

Scope of delivery

• 1 pcs lock case

• Operating manual

Ordered separately

• Strike plate (e.g. EA324)

• Cable EA218 (6m) / EA219 (10m)

• Lead cover EA280/281

• Handle set (e.g. EH006/042) and spindle

• Split spindle EA288/289 with EL560/562

• Cylinder(s) (e.g. CY321T)
